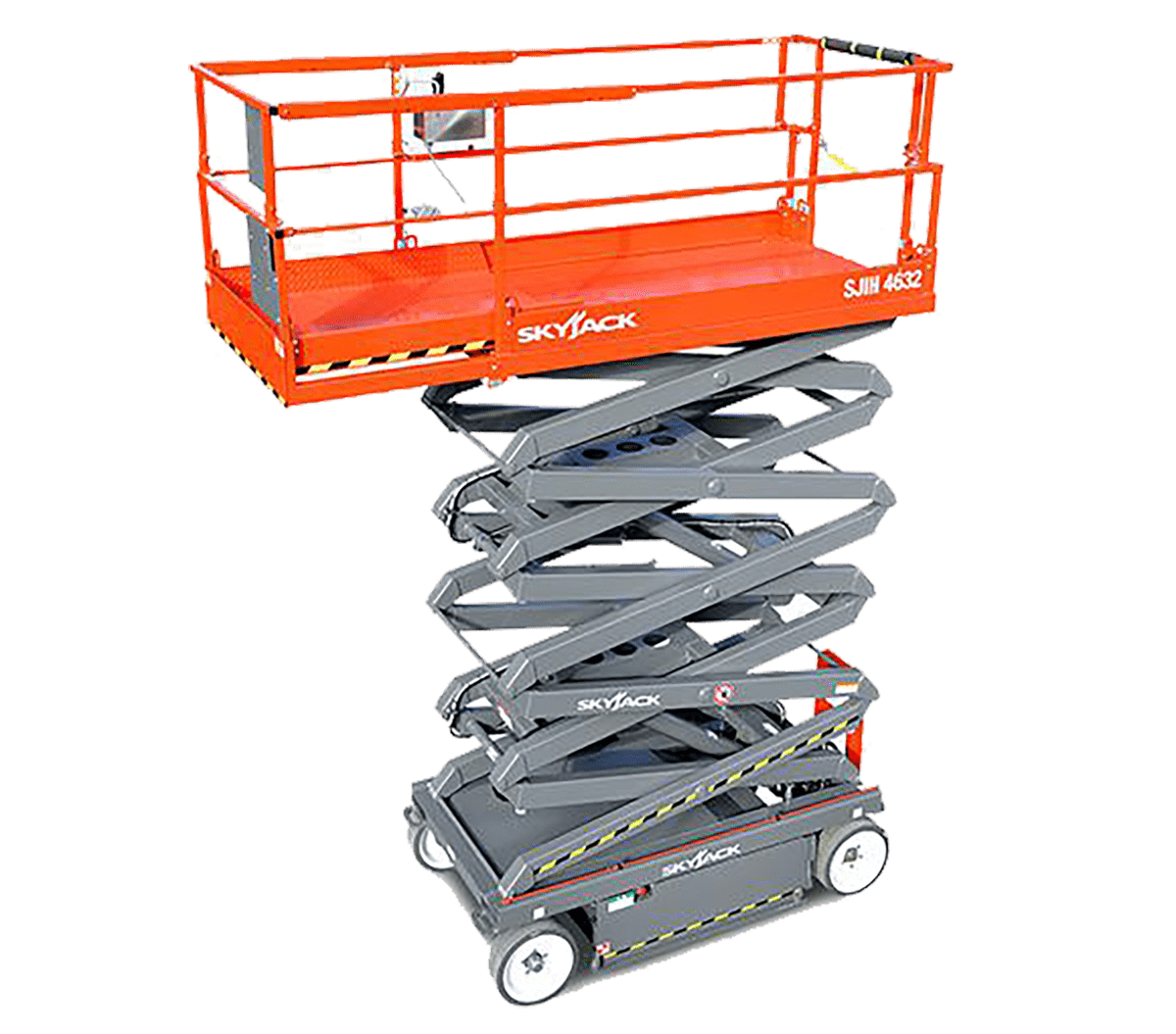

Skyjack SJIII 4632
The Skyjack SJIII 4632 is an electric scissor lift and provide working height of 11.80m. Consistent with Skyjack’s robust and reliable design features, the SJIII 4632 features Skyjack’s standard colour coded and numbered wiring system with analog based controls. The lightest machine in its class, it also features a standard 3ft roll out extension deck and variable speed rear wheel hydraulic drive.
| Dimensions | Metric |
|---|---|
| Working Height | 11.75 m |
| Platform Height | 9.75 m |
| Overall Width | 1.17 m |
| Overall Length | 2.31 m |
| Stowed Height | 2.24 m |
Description
Specification
Make Enquiry
Downloads
Description
Skyjack SJIII 4632 High Capacity, Large Platform, DC Electric 32’ Scissor Lifts
SJIII 4632 STANDARD FEATURES
- Drivable at full height
- Variable speed, rear two-wheel hydraulic drive
- Dual holding brakes
- Proportional controls for drive & lift functions
- 4’ (1.22 m) Roll out extension deck
- 24V DC power source
- Low voltage battery protection
- Up to 30% Gradeability
- Solid rubber, non-marking tires
- Pothole protection system
- 110V AC outlet on platform with GFI
- 28 mph wind rating (12.5 m/s)
- Tilt alarm with drive & lift cut-out
- All motion audible alarm
- Lanyard attachment points
- Operator horn
- Hinged railing system
- Forklift pockets and tie down/lift lugs
- Relay based control system
- Color coded and numbered wiring system
- Telematics ready
- DC Motor Controller
Specification
Make Enquiry
Contact us:
Downloads
Download Spec Sheet Here:
https://oktoolhire.com/wp-content/uploads/2021/01/4626.4632spec.pdf
